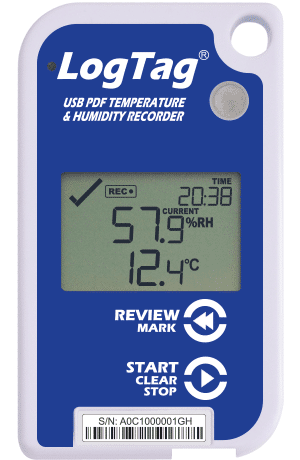

UHADO-16
Multi-Trip USB Humidity & Temperature Data Logger
UHADO-16 Humidity and Temperature Logger measures and stores up to 16,000 sets of high resolution humidity and temperature readings over a measurement range of 0 to 100 %RH and -30 °C to +70 °C (-22 °F to +158 °F).
Key features:
- USB Direct
- LCD Display
- Replaceable Battery
- Detailed analysis and automated data distribution
- User configurable
LogTag® UHADO-16 Humidity and Temperature Logger เป็นอุปกรณ์บันทึกข้อมูลที่สามารถวัดและจัดเก็บค่าความชื้นและอุณหภูมิที่มีความละเอียดสูงได้สูงสุดถึง 16,000 ชุดข้อมูล โดยมีขอบเขตการวัดความชื้นอยู่ที่ 0 ถึง 100 %RH และอุณหภูมิอยู่ที่ -30 °C ถึง +70 °C (-22 °F ถึง +158 °F)

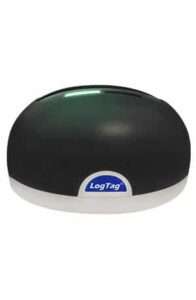

หน้าจอแสดงผลจะแสดงค่าอุณหภูมิและความชื้นปัจจุบัน สถานะการแจ้งเตือน และสถานะการบันทึกข้อมูล ตัวเครื่อง UHADO-16 ติดตั้งพินสัมผัส (Contact pins) 3 จุด เพื่อให้สามารถใช้งานร่วมกับฐานรองเชื่อมต่อ (Interface Cradles) รุ่น LogTag® LTI-USB, LTI-HID และ LTI-WiFi ได้
เมื่อเชื่อมต่อ UHADO-16 เข้ากับคอมพิวเตอร์ผ่านหัวเสียบ USB ในตัว เครื่องจะสร้างรายงาน PDF รายละเอียดข้อมูลความชื้นและอุณหภูมิที่บันทึกไว้โดยอัตโนมัติ โดยไม่จำเป็นต้องใช้อุปกรณ์เสริมหรือซอฟต์แวร์เฉพาะทางเพิ่มเติม
สำหรับการวิเคราะห์ข้อมูลที่ละเอียดขี้น UHADO-16 ยังสามารถสร้างไฟล์ข้อมูลแบบเข้ารหัสที่ใช้งานร่วมกับซอฟต์แวร์ LogTag® Analyzer และระบบ LogTag® Online เพื่อการบริหารจัดการข้อมูลอย่างมีประสิทธิภาพ
| Product Model | UHADO-16 |
| Sensor Measurement Range | -30 °C to +70 °C (-22 °F to +158 °F) |
| Operating Temperature Range | -30 °C to +70 °C (-22 °F to +158 °F) |
| Storage Temperature Range | +10 °C to +50 °C (+50 °F to +122 °F)* |
| Humidity Measurement Range | 0 %RH to 100 %RH (non-condensing), with limitations |
| Humidity Operating Range | 0 %RH to 100 %RH (non-condensing), with limitations |
| Humidity Storage Range | 20 %RH to 60% RH* |
| Rated Temperature Reading Accuracy | Better than ±0.45 °C (±0.8 °F) for +0 °C to +50 °C (+32 °F to +122 °F), typically ±0.3 °C (0.6 °F). Better than ±0.8 °C (±1.4 °F) for +50 °C to +70 °C (+122 °F to +158 °F), typically ±0.5 °C (0.9 °F). Better than ±0.95 °C (±1.7 °F) for -30 °C to +0 °C (-22 °F to +32 °F), typically ±0.6 °C (1.1 °F). Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Humidity Reading Accuracy | Better than ±3 %RH for 20 %RH to 80 %RH, typically ±2 %RH. Better than ±5 %RH for 0 %RH to 20 %RH, typically ±4 %RH. Better than ±5 %RH for 80 %RH to 100 %RH, typically ±4 %RH. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Humidity Resolution | Better than 0.1 %RH |
| Temperature Resolution | Better than 0.1 °C or 0.1 °F |
| Recording Capacity | 16,128 pairs of humidity and temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory for displaying maximum and minimum Temperature and RH values on the LCD. Day summary statistics memory (for display on LCD): up to 30 days of Max/Min/duration and alarm trigger statistics. |
| Sampling Interval | Configurable from 30 seconds to several hours |
| Logging Start Options | Push button start or specific date and time |
| Recording Indication | State indicator “REC” |
| Alarms | 4 temperature and 2 humidity alarms |
| Download Time | Typically less than 10 seconds for full memory, depending on computer or readout device used |
| Environmental | IP61 (when hung or mounted vertically) |
| Power Source | CR2032 3V LiMnO2 Battery (Replaceable) |
| Battery Life | 1 year storage, 1 year of normal use (based on 15 minute logging, download data monthly) |
| Real Time Clock | Built-in real time clock. Typical accuracy ±25ppm @ 25 °C (equivalent to 2.5 seconds/day). |
| Connection Interface | Interface Cradle or USB 2.0 / Micro USB plug (cable not included) |
| Software | LogTag® Analyzer and LogTag® Online |
| Multi-language Support | Multi-language support for English, Spanish, French, Russian and German |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap |
| Weight | 41g |
| Case Material | Polycarbonate |
| *Optimal Storage Condition | For optimal Humidity logger storage, store units in original packaging in an air conditioned area. Storage temperature shall be in the range of 10 °C to 50 °C and humidity at 20 %RH to 60 %RH. Ensure good ventilation (fresh air supply) in storage area to avoid high concentrations of volatile chemicals. Do not store units in the same room as solvents or any other strong smelling products. |
