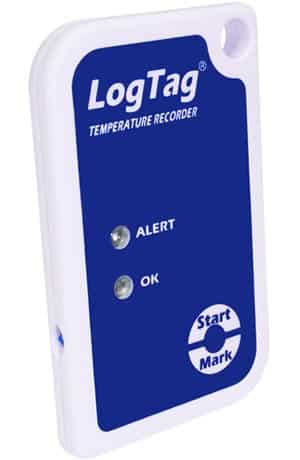

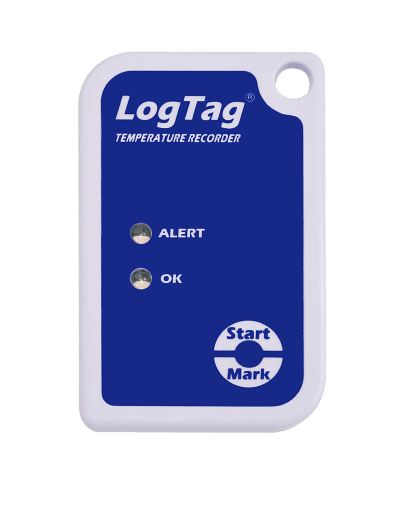

TRIX-8
Multi-Use Temperature Data Logger
Key Fratures:
- Via USB interface cradle (Requires a cradle)
- WHO PQS Pre-qualified under E06/06: PQS CODE E006/00.
- Versatile, wide range, multi-trip Temperature Logger.
- 8000 readings memory capacity with up to 3 years battery life.
- ‘OK’ & ‘ALERT’ Indicator with high and low customizable alarms.
- The TRIX8 has a robust IP65 design
Please note: USB interface cradle is required to operate the TRIX-8.
LogTag® TRIX-8 เป็นเครื่องบันทึกอุณหภูมิชนิดใช้งานได้หลายครั้ง (Multi-trip) ที่มีความอเนกประสงค์และรองรับช่วงการวัดที่กว้าง โดยสามารถบันทึกค่าอุณหภูมิที่มีความละเอียดสูงในช่วงตั้งแต่ -40°C ถึง +85°C (-40°F ถึง +185°F) ตัวเครื่องบรรจุในเคสโพลีคาร์บอเนตที่แข็งแรงและทนทาน มาพร้อมกับนาฬิกาเรียลไทม์ในตัว ทำให้สามารถบันทึกวันที่และเวลา (Date/Time stamp) กำกับในทุกค่าอุณหภูมิที่ตรวจวัดได้
การใช้งานร่วมกับฐานรองเชื่อมต่อ (LogTag® Interface) และซอฟต์แวร์ LogTag Analyzer ที่มีให้ดาวน์โหลดฟรี ช่วยให้การตั้งค่าการบันทึกทำได้โดยง่าย ไม่ว่าจะเป็นการตั้งเวลาเริ่มบันทึกแบบหน่วงเวลา (Delayed start), ช่วงห่างในการบันทึกข้อมูล (Sampling interval), จำนวนชุดข้อมูลที่ต้องการบันทึก, การบันทึกแบบต่อเนื่องหรือแบบกำหนดจำนวนครั้ง รวมถึงการตั้งค่าเงื่อนไขเพื่อเปิดใช้งานไฟแจ้งเตือนสถานะ (ALERT indicator) การดึงข้อมูลสามารถทำได้ผ่านโปรแกรม LogTag® Analyzer ซึ่งมีเครื่องมือสำหรับการสร้างกราฟ, การซูมดูข้อมูล, การสรุปสถิติ และสามารถส่งออกข้อมูลไปยังแอปพลิเคชันอื่น เช่น Excel ได้
LogTag® TRIX-8 ได้รับมาตรฐานสากลที่เกี่ยวข้องสำหรับอุปกรณ์ตรวจสอบอุณหภูมิอย่างครบถ้วน เช่น FCC, CE, C-TICK, TÜV, EN12830, WHO PQS และ RoHS ซึ่งไม่เพียงแต่แสดงถึงคุณภาพของอุปกรณ์เท่านั้น แต่ยังเน้นย้ำถึงความเหมาะสมในการใช้งานตรวจสอบอุณหภูมิที่ต้องการความแม่นยำและความสม่ำเสมอสูง
จุดเด่นที่แตกต่างของรุ่น TRIX-8:
ความทนทานสูง: ใช้เคสโพลีคาร์บอเนต (Polycarbonate) ซึ่งแข็งแรงกว่ารุ่นที่มีหน้าจอ
ช่วงอุณหภูมิที่กว้างกว่า: รองรับได้ต่ำสุดถึง -40°C และสูงสุดถึง +85°C (รุ่น UTRID-16 ได้ถึง +70°C)
การเชื่อมต่อ: รุ่นนี้ “ไม่มี” หัว USB ในตัว ต้องใช้ร่วมกับ Interface Cradle (ฐานรอง) ในการตั้งค่าและดึงข้อมูล
มาตรฐาน: รองรับมาตรฐานอุตสาหกรรมและมาตรฐานทางการแพทย์ (WHO PQS) อย่างครบถ้วน
| Product Model | TRIX-8 |
| Sensor Measurement Range | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F) |
| Storage Temperature Range | -30°C to +55°C (-22°F to +131°F) |
| Rated Temperature Reading Accuracy | Better than ±0.5°C for -20°C to +40°C Better than ±0.7°C for -30°C to -20°C and +40°C to +60°C Better than ±0.8°C for +60°C to +85°C Better than ±0.9°C for -40°C to -30°C. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | Less than 0.1°C for -40°C to +40°C Less than 0.2°C for +40°C to +80°C Less than 0.4°C for +80°C to +85°C LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s). |
| Recording Capacity | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to several hours. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18 hours. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Alarms | 1 configurable upper and 1 configurable lower alarms. |
| Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used. |
| Environmental | IP65 (roughly equivalent to NEMA 4) |
| Power Source | CR2450 3V LiMnO2 Battery (Fixed) |
| Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Size | 86mm(H) x 54.5mm(W) x 8.6mm(T) |
| Weight | 33g |
| Case Material | Polycarbonate |
