ThermoVaultX

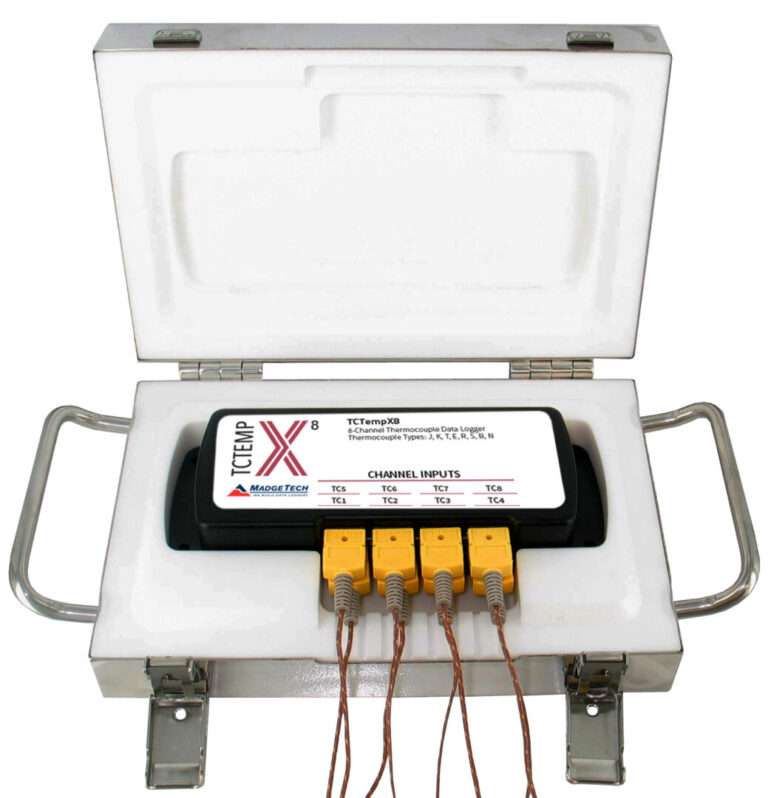

The ThermoVaultX is an oven temperature profiling system.
System Includes:
- TCTempX Thermocouple-Based Temperature Data Logger
- Thermal Insulated Enclosure
- Type K Thermocouples
Applications:
- Extreme temperature monitoring
- Oven profiling
- Powder coating cure ovens
- Wet coating cure ovens
- Batch ovens
- Conveyor ovens
- Implement HACCP programs
รายละเอียดคุณลักษณะ: ThermoVaultX
ThermoVaultX คือระบบบันทึกข้อมูลอุณหภูมิขั้นสูงที่ออกแบบมาสำหรับการวิเคราะห์อุณหภูมิภายในเตาอบ (Oven Profiling) โดยเฉพาะ โดดเด่นด้วยระบบฉนวนกันความร้อนและใช้เซนเซอร์แบบเทอร์โมคัปเปิล (Thermocouple) อุปกรณ์ที่แข็งแกร่งนี้มีความทนทานเป็นเลิศ โดยสามารถทนอุณหภูมิภายในเตาอบได้สูงถึง 350 °C นานสูงสุดถึง 25 นาที (เมื่อปิดผนึกอย่างถูกต้อง)
โครงสร้างและการวัดผล
วัสดุตัวเครื่อง: โครงสร้างภายนอกผลิตจากสแตนเลส (Stainless Steel Enclosure) แข็งแรงทนทาน
ความแม่นยำ: ทำงานร่วมกับโพรบเทอร์โมคัปเปิลภายนอก เพื่อให้มั่นใจในการวัดอุณหภูมิที่แม่นยำและมีการตอบสนองต่อการเปลี่ยนแปลงของอุณหภูมิที่รวดเร็ว
การจัดการข้อมูลและซอฟต์แวร์
ThermoVaultX รองรับการใช้งานร่วมกับซอฟต์แวร์ MadgeTech 4 รุ่นล่าสุดอย่างสมบูรณ์แบบ ช่วยให้การเริ่มบันทึก, การหยุด และการดึงข้อมูลเป็นเรื่องง่าย
การวิเคราะห์: ซอฟต์แวร์มีอินเทอร์เฟซที่ใช้งานง่าย แสดงข้อมูลทั้งในรูปแบบกราฟ, ตาราง และสรุปผลเพื่อการวิเคราะห์เชิงลึก
การปรับแต่ง: สามารถปรับเปลี่ยนหน่วยวัดทางวิศวกรรมที่แสดงผลได้ตามความต้องการของผู้ใช้งาน
General
| Memory | 4-Channel: 524,032 readings per channel 8-Channel: 262,016 readings per channel |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Baud Rate | 460,800 baud |
| Cold Junction Compensation | Automatic |
| Channels | 4-Channel: 4 Internal & 4 Remote 8-Channel: 8 Internal & 8 Remote |
| Battery Life | 18 months typical |
| Dimensions | 9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm) 12.3 in x 6.65 in x 2.45 in (312 mm x 168 mm x 62 mm) |
| Operating Environment | See Data Sheet, 0 %RH to 95 %RH, non-condensing |
| Required Interface Package | USB-A to micro USB cable |
Temperature
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (0 °C to 50 °C) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
