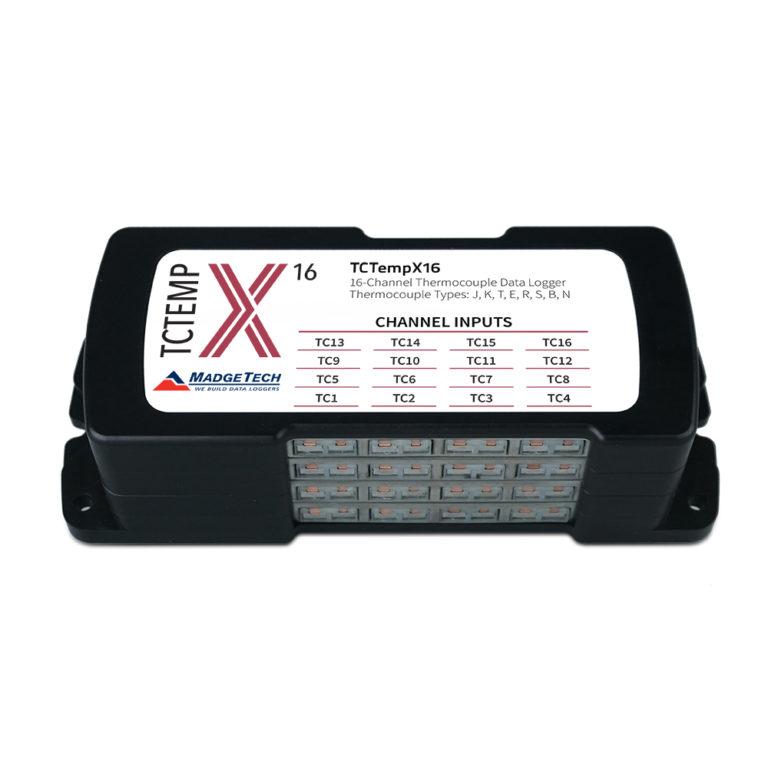

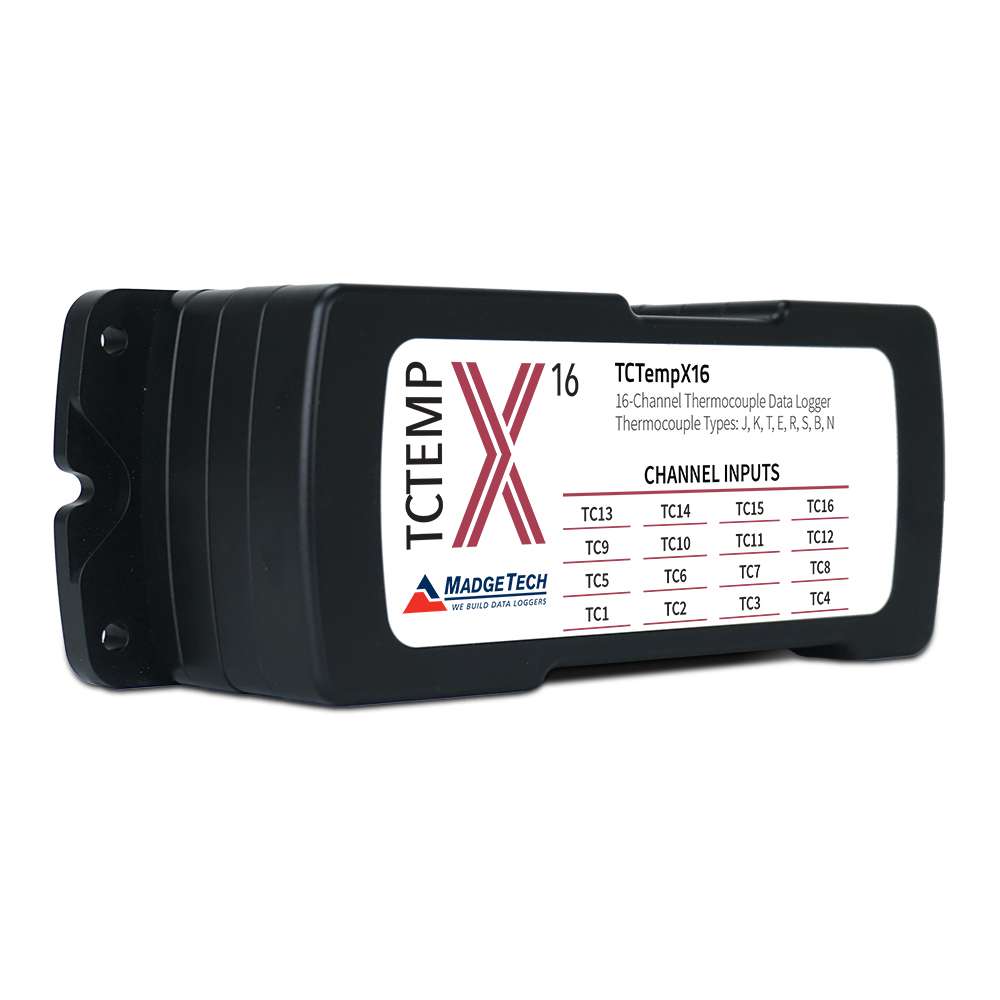

TCTempX
The TCTempX Series includes 4, 8, 12, and 16-channel thermocouple-based temperature data loggers.
Key Features:
- Accepts a Variety of Thermocouples
- Large Memory Capacity
- Individual Cold Junction Compensation
Application:
- Warehouse Monitoring
- Refrigerator Monitoring
- Medical and Pharmaceutical
- Oven Monitoring
- Chamber Validation
- Smoke Houses
- Food Processing
- HVAC
- Engine Studies
รายละเอียดคุณลักษณะ: TCTempX Series
TCTempX Series ประกอบด้วยเครื่องบันทึกข้อมูลอุณหภูมิแบบใช้เทอร์โมคัปเปิล รุ่น TCTempX4, TCTempX8, TCTempX12 และ TCTempX16 โดยมีความเร็วในการบันทึกข้อมูลสูงสุดถึง 4 Hz เหมาะสำหรับการใช้งานที่หลากหลาย ไม่ว่าจะเป็นการตรวจสอบอุณหภูมิจากระยะไกล หรือการวัดอุณหภูมิหลายจุดพร้อมกันในจุดเดียว
จุดเด่นและการจัดการช่องสัญญาณ
การจัดการหน่วยความจำ: นอกจากจะมีความจุข้อมูลขนาดใหญ่แล้ว ผู้ใช้ยังสามารถเลือกปิดช่องสัญญาณที่ไม่ได้ใช้งานเพื่อเพิ่มพื้นที่ในการบันทึกข้อมูลให้สูงสุด
การระบุช่องสัญญาณ: เพื่อความสะดวกในการจำแนกข้อมูล ผู้ใช้สามารถตั้งชื่อให้กับแต่ละช่องสัญญาณได้สูงสุดถึง 10 ตัวอักษร
ความแม่นยำและระบบอัจฉริยะ
Cold Junction Compensation: อุปกรณ์ซีรีส์นี้มีระบบชดเชยอุณหภูมิที่จุดต่ออ้างอิง (Cold Junction Compensation) แยกอิสระในแต่ละช่องสัญญาณ ช่วยเพิ่มทั้งความแม่นยำและความรวดเร็วในการตอบสนอง
การบันทึกสถานะโพรบ: หากโพรบถูกถอดออกหรือสายขาดในระหว่างการบันทึก ซอฟต์แวร์จะทำการเขียนบันทึกกำกับ (Annotate) ในข้อมูลให้โดยอัตโนมัติ
การจัดการข้อมูลและซอฟต์แวร์
TCTempX Series รองรับการใช้งานร่วมกับซอฟต์แวร์ MadgeTech 4 รุ่นล่าสุด ทำให้การเริ่มต้น, การหยุด และการดาวน์โหลดข้อมูลเป็นเรื่องง่าย ข้อมูลจะถูกแสดงผลในรูปแบบกราฟ, ตาราง และสรุปผลเพื่อการวิเคราะห์ โดยสามารถเลือกดูเป็นหน่วยวัดทางวิศวกรรมที่ปรับแต่งได้ตามต้องการ
General
| Memory | 4-channel: 524,032 readings 8-channel: 262,016 readings 12-channel: 174,677 readings 16-channel: 131,008 readings |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Cold Junction Compensation | Automatic, based on internal channel |
| Channels | 4, 8, 12, 16 |
| Battery Life | 18 months typical |
| Material | Black anodized aluminum |
| Dimensions | 4-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) 8-channel: 2.70 in x 7.25 in x 1.22 in (65.6 mm x 184.2 mm x 31.0 mm) 12-channel: 2.70 in x 7.25 in x 1.68 in (65.6 mm x 184.2 mm x 42.7 mm) 16-channel: 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm) |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF), 0 %RH to 95 %RH non-condensing |
| Approvals | CE |
Temperature
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B, N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
