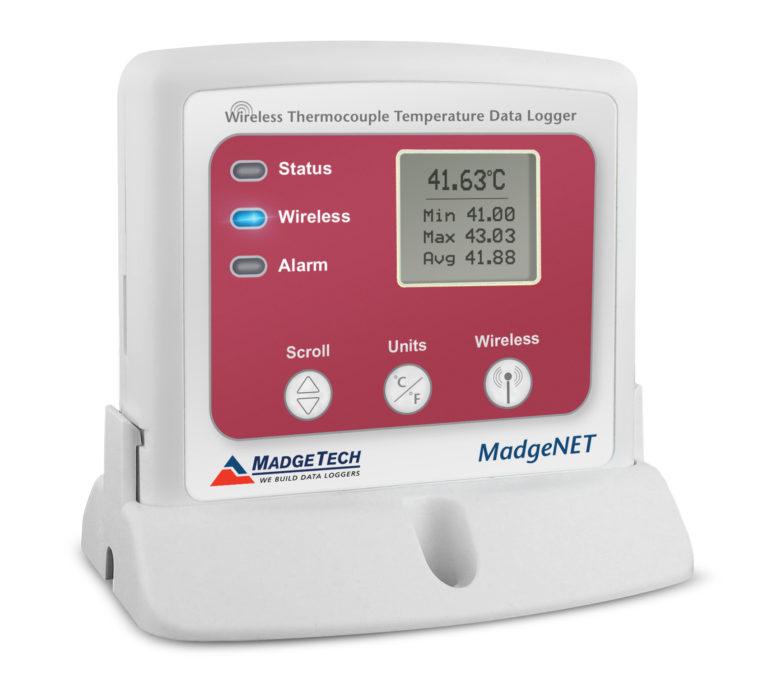

RFTCTemp2000A
The RFTCTemp2000A is a wireless thermocouple-based temperature data logger.
Key Features:
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications
Suitable for:
- Ambient versus product temperature
- Oven monitoring
- Autoclave validation
- Recording thermocouple data
Application:
- Clean Rooms
- Oven Temperature Monitoring
- Laboratories and Hospitals
- Medical and Pharmaceutical
- Warehouse Mapping
- Storage of Perishable Goods
- Chemical Storage
- Incubator Monitoring
- Refrigerators and Freezers
รายละเอียดคุณลักษณะ: RFTCTemp2000A
RFTCTemp2000A คือเครื่องบันทึกข้อมูลอุณหภูมิแบบไร้สายที่ใช้ร่วมกับเทอร์โมคัปเปิล (โพรบแยกจำหน่ายต่างหาก) เหมาะอย่างยิ่งสำหรับการตรวจสอบอุณหภูมิสภาพแวดล้อมและอุณหภูมิในจุดที่เข้าถึงยาก โดยรองรับเทอร์โมคัปเปิลได้หลากหลายประเภท และถูกออกแบบมาพร้อมเซนเซอร์วัดอุณหภูมิในตัวเพื่อใช้ในการชดเชยอุณหภูมิที่จุดต่ออ้างอิง (Cold Junction Compensation)
รูปแบบการเชื่อมต่อ จอแสดงผล และการแจ้งเตือน
ตัวเลือกการเชื่อมต่อ: มีให้เลือกใช้งาน 2 รูปแบบ คือ แบบหัวเสียบขนาดเล็ก (RFTCTemp2000A-MP) หรือแบบจุดต่อสาย (RFTCTemp2000A-TB)
หน้าจอ LCD: แสดงผลค่าอุณหภูมิปัจจุบันได้ทันที รวมถึงค่าสถิติต่ำสุด (Minimum), สูงสุด (Maximum) และค่าเฉลี่ย (Average)
ระบบแจ้งเตือนอัจฉริยะ: สามารถตั้งค่าการแจ้งเตือนได้เอง โดยระบบจะแจ้งเตือนผ่านอีเมลหรือข้อความ (Text) เมื่อค่าอุณหภูมิออกนอกขอบเขตที่กำหนด เพื่อให้ผู้ใช้สามารถรับมือกับปัญหาได้ทันที
การจัดการข้อมูลและระบบคลาวด์
ซอฟต์แวร์ MadgeTech 4: รองรับการใช้งานร่วมกับซอฟต์แวร์เวอร์ชันล่าสุด ช่วยให้การเริ่มต้น, หยุดบันทึก และดาวน์โหลดข้อมูลทำได้อย่างสะดวก พร้อมการแสดงผลแบบกราฟ ตาราง และสรุปผลในหน่วยวัดที่ปรับแต่งได้
ข้อควรทราบ
จำเป็นต้องใช้งานร่วมกับตัวรับสัญญาณไร้สาย RFC (RFC wireless interface)
General
| Memory | 16,128 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 3 years typical at a 1 minute reading rate |
| Material | ABS plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) – Data logger only |
| IP Rating | IP22 |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
Temperature
| External Temperature Sensor | Thermocouple types: J, K, T, E, R, S, B, N |
| External Temperature Range | -210 °C to +1300 °C (-410 °F to +2372 °F) (Probe Dependent) |
| External Temperature Resolution | 0.1 °C (0.18 °F) (Probe Dependent) |
| External Temperature Calibrated Accuracy | ±0.5 °C (± 0.9 °F) (Probe Dependent) |
| Internal Temperature Sensor | Internal Semiconductor |
Wireless
| RF Carrier Frequency | 2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication. |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
