Key Features:

  • Submersible
  • Available in Various Probe Lengths & Styles
  • Measures Temperatures from -200 °C to +350 °C (Only Probe)

Application:

  • Autoclave Verification
  • Implement HACCP Programs
  • Food Preparation and Processing
  • Environmental Studies
  • Well Monitoring
  • Dishwasher Testing
  • Pasteurization

Specification

General

Memory65,536 readings
Reading Rate1 reading every second up to 1 reading every 24 hours
Baud Rate125,000
Battery Life2 years typical (1 minute reading rate)
User Replaceable Battery
Material316 Stainless Steel

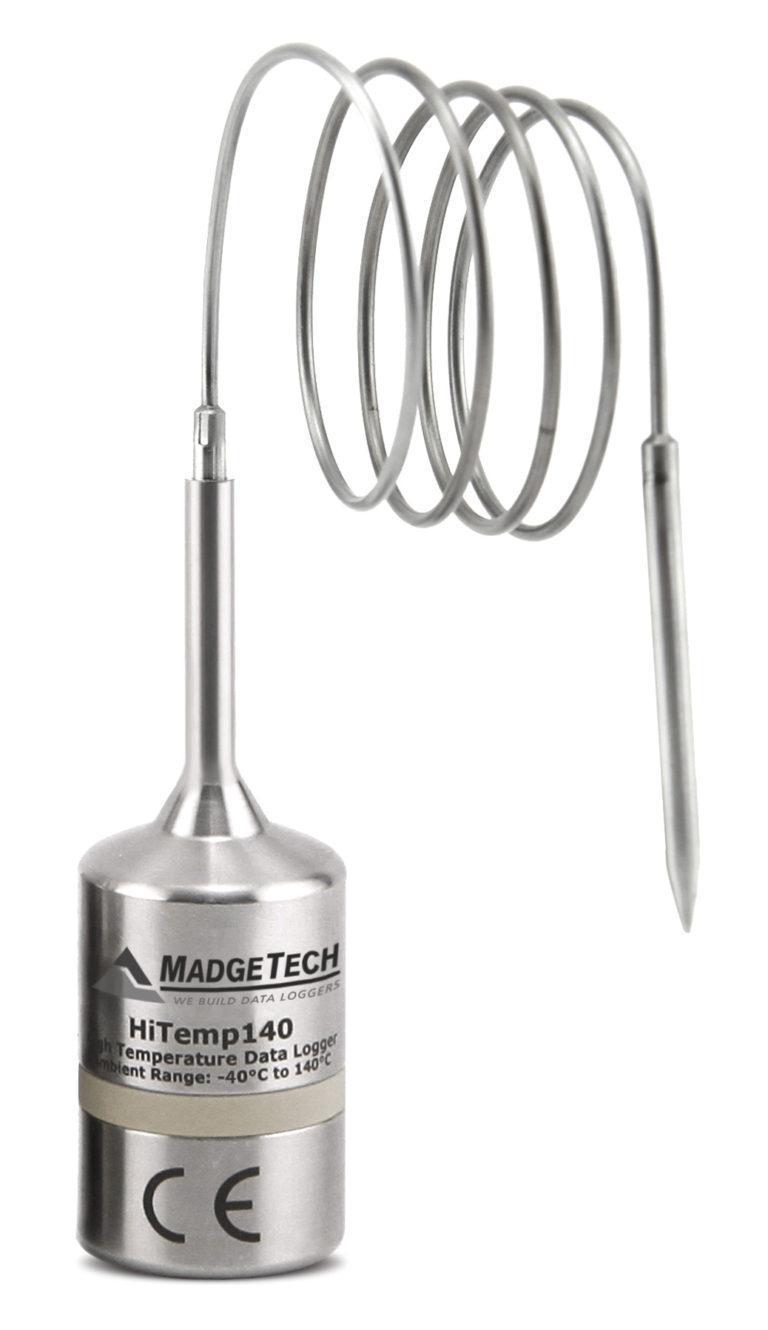

HiTemp140 Pig Tail Probe DimensionsBody: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)

HiTemp140-PT-1: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

HiTemp140-PT-5: Probe tip is 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle)
Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)

HiTemp140-PT-12: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.)
Bendable portion is 12 in x 0.062 in dia. (305 mm x 1.6 mm dia.)
IP RatingIP68
SubmersibleYes
Operating Environment-40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface PackageIFC400
ApprovalsCE



Temperature

Temperature Sensor100 Ω Platinum RTD
Temperature Resolution0.01 °C (0.018 °F)
Temperature Calibrated Accuracy±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72 ºF (-40 °C to -20.01 °C/-40 °F to +-4.02 °F)
Probe Temperature Range-200 °C to +350 °C (-328 °F to +662 °F) (Body of Logger Cannot Exceed 140 °C)
